F-CON V-PRO

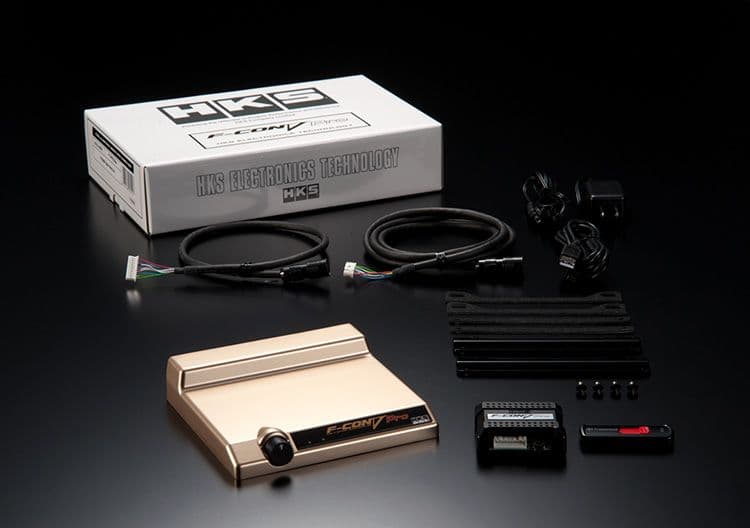

F-CON V Pro Ver.3.4 Stand-alone Computer for High-level Professional Tuners. More variety of settings and more detailed management are possible. Control method is selectable from L-Jetronic, D-Jetronic, and speed throttle. * F-CON V Pro does not include any pre-set data. Setting by an F-CON DEALER is required.
More detailDetails
- Hardware and software for F-CON V Pro has been upgraded to version 3.4.
- Fuel Injector control is available up to 8 injectors. This enables setting of up to 8- cylinder engine with sequential injection system or 4-cylinder engines with twin injection system.
- In addition to independent ignition control for up to 8-cylinders, rev limit control by the ignition cut-off is possible (only for race use). With this function, the boost can be maintained to the full level even while stopped before a drag racing launch.
- An air fuel meter can be connected directly for use with closed loop mapping and data logging functions. User-friendliness has been taken into account.
Airflow
Throttle
Accelerator position
Intake Air Pressure
Water Temperature
FUNCTION
High level fuel & ignition controls based on full signal input functions and other controls that are connected with auxiliary outputs by option output function are available.
Airflow | Exhaust Gas Temperature | Atmospheric Air Pressure | Ignition Volume Correction |
Throttle | Fuel Temperature | External A/F | Fuel Sub-Correction Selection |
Intake Air Pressure | Oil Temperature | External Knocing | Ignition Sub-Correction Selection |
Water Temperature | Fuel pressure | O2 | Ignition Cut Rev Correction |
Intake Air Temperature | Oil Pressure | Fuel Volume Correction | and more. |
OPTION OUTPUT FUNCTION
To perform a hard level tuning from boost-up tuning, with this version of F-Con V Pro, data edit in real time that is not available by flash rewriting is possible, and setting workability is high. Also, driving data can be recorded using a log function.
Electric Fan Relay | Idle Control | Power Source Status | Warning Oil Temperature |
Fuel Pump Relay | Log Status | Boost Control | Warning Exhaust Gas Temperature |
NOS Relay | Anti-Lag Status | Warning Rpm | Warning Other Pressure |
A/C Relay | Ignition Cut (Start) Status | Warning A/F | Warning Intake Air Pressure |
Main Relay | Error Status | Warning Knocking | Warning Fuel Pressure |
IC Spray | Communication Status | Warning Water Temperature | Warning Oil Presure |
PRODUCT SIZE
W150 × D140 × H18(H32:The highest point on the coupler's side.)
SERIAL NUMBER REFERENCE
PRODUCT | SERIAL No. | REMARKS |
---|---|---|
F-CON V Pro Ver.3.4 | FP3##0001~ | Case Color: Gold |
F-CON V Pro Ver.3.3 | FCP030001~ | Case Color: Gold. A white round sticker is affixed to the main unit. |
F-CON V Pro Ver.3.2 | FCP020001~FCP030000 | Case Color: Gold. A red round sticker is affixed to the main unit. |
F-CON V Pro Ver.3.1 | FCP003001~FCP020000 | Case Color: Gold. A blue round sticker is affixed to the main unit. |
F-CON V Pro Ver.3.0 | FCP000001~FCP003000 | Case Color: Gold |
F-CON V Pro Ver.2 | FCV010001~ | Case Color: Silver |
F-CON V Pro Ver.2 | FCV000001~FCV010000 | Case Color: Silver |
