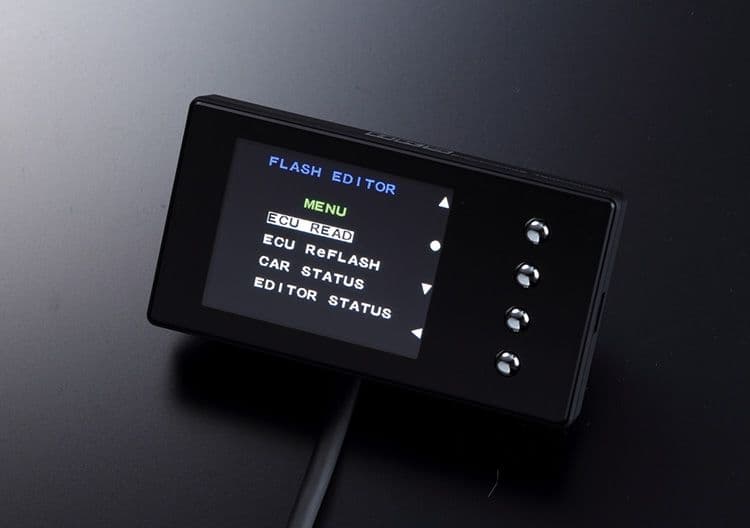

HKS' ECU ReFlash tool is available for tuning beginners and professionals. Flash Editor is a setting tool for ECU reflash via OBD II connection.

More detail

Details

Summary



  • ECU reflashing via the on board diagnostics port (OBD II) is made possible.

  • Stock data can be read and written.

  • Can save stock ECU data and 3 other custom data files.

  • HKS produced data (Phase 1, Phase 2) is preinstalled.

  • Data can be edited by F-CON dealer with Power Writer.

  • 1 Flash Editor is used per vehicle tuned.




* Data are prepared based on the JDM vehicle.





Data for Standard Unit and Power Writer Shops







Main Functions




  • ECU Read


    Read ECU data and store via OBD II connection.




  • Create and Save Custom Data


    Create and save custom data based on saved stock ECU data.




  • Write to ECU


    Write to ECU. write stock or custom data to ECU.




  • Vehicle Information Display


    Display vehicle information via OBD II connection.




  • USB Connection


    USB connection for connection with Power Writer. (Only available for PowerWriter shops)




  • Data Protection


    Each Flash Editor is restricted to 1 vehicle and data are protected.







Main Features



Connection to a PC is not required for ECU Reflash




  • Vehicle data is preset; FLASH EDITOR can practice ECU reflash by itself.

  • Custom data can be reverted to the stock data.

  • 2 different preset custom data are available.

  • Data are protected to prevent data from being leaked by other tools.








High performance scalability /PowerWriter for FLASH EDITOR




  • Vehicle specific custom data can be created.

  • HKS' authorized PowerWriter shops have the special software.

  • A special software is available for HKS PowerWriter shops.

  • PowerWriter shops can provide precise settings to meet user's needs.






Compatible with F-CON iS / F-CON V Pro




  • Select F-CON iS or V Pro suitable for the level of tuning.

  • Flash Editor prevents the CEL from coming on while using the F-CON V Pro.

  • Real-time map data edit is available by use with the F-CON.






Pre Data for the vehicles


HKS Vehicle Specific Custom Data Concept for SUBARU & MITSUBISHI



  • Phase1: Speed limit cancellation + Drivability Improvement.

  • Phase2: Boost pressure increase (Optimized maps.) There are some HKS parts required to install.


* If the parts specification is different from the HKS specification, resetting must be done at HKS PowerWriter shops.





HKS Vehicle Specific Custom Data Concept for HONDA



  • Phase1, 2: Speed limit cancellation + Drivability Improvement.

  • Phase2: Boost pressure increase (Optimized maps.) There are some HKS parts required to install.


* If the parts specification is different from the HKS specification, resetting must be done at HKS PowerWriter shops.





Note


Before Use



  • Only ECU IDs saved on the FLASH EDITOR unit is writable. (To write other ECU IDs, FLASH EDITOR software or Power Writer software must be upgraded.)
     * Data are prepared based on the JDM vehicle.


[Applicable ECU ID Codes] (2012.9.21)



  • VAC cannot be used with Flash Editor.

  • Flash Editor functions based on the stock ECU data; data customized by other ReFlash tool are not applicable.

  • Make sure the battery voltage is high enough.


When using



  • During data transmission, do not disconnect the connector, turn off the ignition power, operate the A/C, hazard light, etc.

  • Battery voltage shortage may cause communication error. When the error is noticed, recharge the battery.
