HIPERMAX SERIES OPTIONAL PARTS

HIPERMAX Series option parts

•
  1799-SA009 : Wrench Set (2 pcs)

•
  1799-SA010 : Universal Bracket (2 pcs)

•
  1799-SA028, 29 : Installation Spacer (2 pcs)

•
  1799-SA027, 82004-AK002 : Spring Set (2 pcs)

•
  1799-SA030, 031, 82004-AK012, 013, 014, 020, 021, 022 : Dustboots Set (Black) (2 pcs)

•
  1799-SA035 : Dial Set for Inverted Type (Gold) (2 pcs)

• <

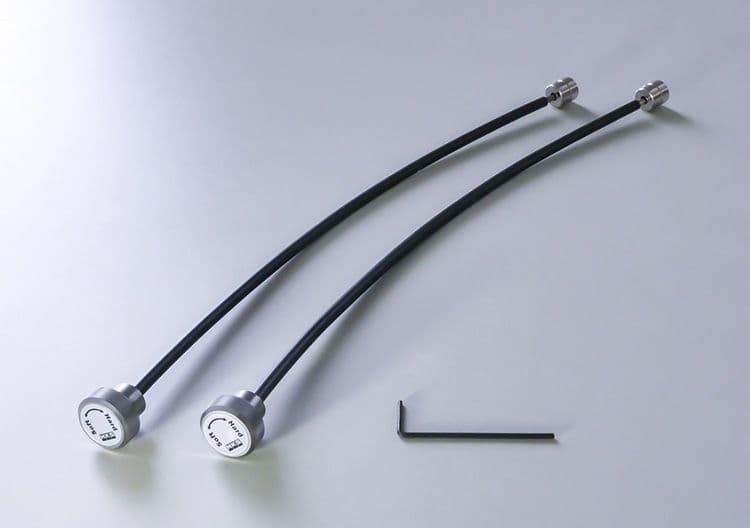

  1799-SA020, 021, 022, 023, 31 : Adjustment Cable Set (2 pcs)

•
  1799-SA025 : Adjustment Dial (1 pcs)

•
  82004-AK023 : Adjustment Knob Set for Inverted Strut Type (2 pcs)

•
  82004-AK024 : Rubber Upper Bearing Set for Inverted Strut Type (2 pcs)

•
  82004-AK003 : WRENCH HOOK DAMPER (1 pcs)

 

DUST BOOTS SET

Installation of these dust boots prevents damage to the damper from stepping-stones and enhances durability of the damper.

 

BUMP RUBBER (2 pcs SET)

 

THRUST WASHER

For easier ride height adjustment of a normal coilover damper, insert this washer between the spring and lower seat.

 

CATALOG >>HIPERMAX Series option parts<

 

SPHERICAL BEARING (2 pcs set)

The spherical bearing is press-fit to the spherical body. Use this bearing assembly when a pillow ball of a pillow upper mount is worn out as a repair part. Easy bolt-on installation.

* NOTE :
Select correct one referring to the application chart below. The shape must be the same as the one previously installed.



 CATALOG>> SPHERICAL BEARING (2PCS SET) <

 

■HIPERMAX MAX IV SP
(1)	ZN6(F), CT9A(F), CZ4A(F), GDB(E-G)(F), GRB(F)
(2)	－
(3)	S15(F)
(4)	ZN6(R), S15(R), BNR32(F), BNR32(R), BNR34(F), BNR34(R), R35(F), R35(R), Z33(F), Z33(R), CT9A(R), CZ4A(R), GRB(R), FD3S(F), FD3S(R)
(5)	GDB(E-G)(R)
(6)	－



■HIPERMAX MAX IV GT
(1)	ZN6(F), CP9A(F)
(2)	－
(3)	－
(4)	－
(5)	－
(6)	－



■HIPERMAX S-Style X
(1)	－
(2)	#CR30W(F), #NH10W(F), AZR60G(F), ZRR70W(F), E52(F)
(3)	NCP31(F), QNC21(F), NHW20(F), ZVW30(F), ZVW4#W(F), GSR50W(F), GGH20W(F), C25(F), RF3(F), RG1(F), RK1(F)
(4)	JZS161(F), JZS161(R), JZS171(F), JZS171(R), JZS177(F), JZS177(R), UCF20(F), UCF20(R), UCF30(F), UCF30(R), GRS18#(F), GRS18#(R)
(5)	－
(6)	－



■HIPERMAX D'
(1)	－
(2)	－
(3)	－
(4)	JZX100(F), JZX100(R), JZX110(F), JZX110(R), S13(R), S14(R), S15(R)
(5)	－
(6)	－
