WASTEGATE

WASTEGATE

HKS GT wastegate has big engine displacement and high supercharging pressure for smaller and lighter design. With the smaller design, there is more room for layout. And the installation with the V band makes it easier for maintenance. 2 types of valve diameter of D60, D50 setting can have the stable control over boost for the size of the turbocharger. There are 4 wastegate spring for D60 and 3 for D50(2 are already loaded for both products) attached, therefore, it's possible to change from wide range of boost pressure setting.

More detail
Filter By
Nallow down
Open Application List

Details

D60 VALVE

D60 valve, same as the GT wastegate but smaller and lightweight that has the about the same lift power and flow characteristics. We have made 2/3 of lightweight of 2,246g to 1,509g compare to GT wastegate.

 

1.58.8～98.1kPa (0.6～1.0kgf/cm2)

2.88.3～127.5kPa (0.9～1.3kgf/cm2)

3.127.5～166.7kPa (1.3～1.7kgf/cm2)

4.166.7～205.9kPa (1.7～2.1kgf/cm2)



D50 VALVE

D50 valve that is same as the SPL(racing) wastegate and we made them lightweight.We have made 3/4 of lightweight of 1,890g to 1,443g compare to SPL(racing) wastegate.

 

1.78.5～107.9kPa (0.8～1.1kgf/cm2)

2.107.9～137.3kPa (1.1～1.4kgf/cm2)

3.137.3～166.7kPa (1.4～1.7kgf/cm2)

4.166.7～196.1kPa (1.7～2.0kgf/cm2)

 

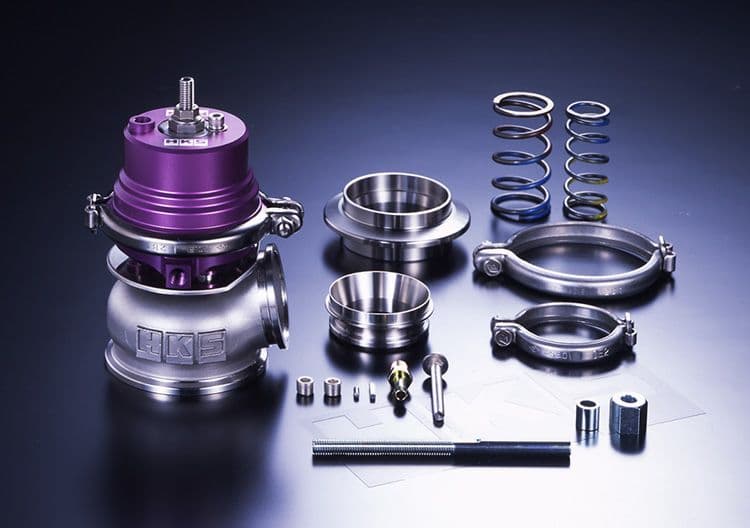

Small in size and lightweight, but it has the same lift amount/flow characteristic as the GT wastegate. The upper case is made of alumite, and housing is stainless cast steel for the beautiful exterior. Adopted G coupling for installation of upper cases and lower case. V band is included to install the exhaust manifold. The spring change work will be more efficient by using attached SST.

 

GTII Wastegate Repair Parts

Bellofram:Set for the repair. Spring set: For setting change for full turbine kit or setting for repair. (replacement SST attached) Flange set: For exhaust manifold development or for repair setting.(base flange + outlet flange set) * All build-to-order manufacturing.
