Product Name

OIL PARTS KIT FOR GTIII-RS

MSRP

$45.00

Specifications

Product Code
14008-AK009
WEIGHT(kg)
0.1
NO. OF BOX
1
LENGTH (mm)
120
WIDTH (mm)
90
HEIGHT (mm)
90

Available for

Make
UNIVERSAL
Model
UNIVERSAL
Years
Engine
Chassis
Drive Train
Remarks

OIL INLET PARTS KIT GT II TURBINE

HKS





OIL PARTS KIT GTIII-RS

The oil parts kit for GTIII-RS' oil piping.

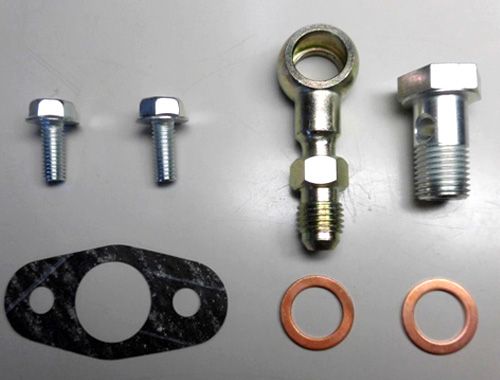

【KIT PARTS】

PRODUCTSPEC.QTREMARKS

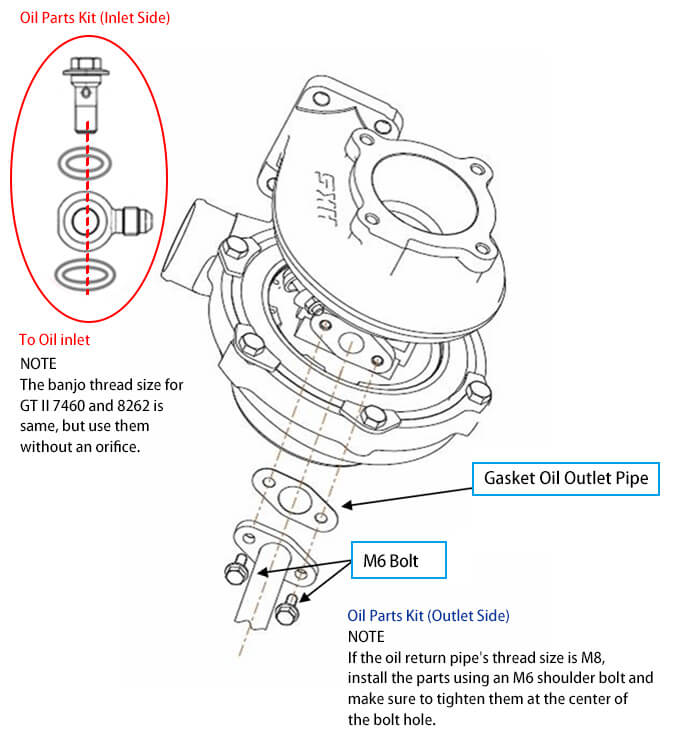

BANJO BOLTM10 x P1.251To install the oil inlet parts
BANJOD12 - AN4(M)1
Cu. WASHERD122
BOLTM6 x P1.02To install the oil outlet parts
OIL RETURN FLANGE GASKET 1










●WATER LINE SET  To Water Cooling Port

WATER LINE SET
(Available separately)

【Kit Parts】

  • Hose L=1000 x1
  • Banjo D14 x2
  • Cu. Washer D14 x4
  • Banjo Bolt M14-P1.5 x2
  • Hose Band #4 x2





【GT TURBINE WATER LINE SET】

PIPE Dia.CODE No.
D81499-RA041
D101499-RA042







ProductCode No.Remarks
OIL PARTS KIT for GTIII-RS14008-AK009A kit for oil piping of GTIII-RS universal turbocharger.
