Product Name

HIPERMAX S-STYLE X JZS161 FULL KIT

MSRP

$1,980.00


Specifications

Product Code
80120-AT203
WEIGHT(kg)
22
NO. OF BOX
1
LENGTH (mm)
685
WIDTH (mm)
290
HEIGHT (mm)
290

Available for


Make
LEXUS
Model
GS 300
Years
1998-2005
Engine
2JZ-GE
Chassis
Drive Train
RWD

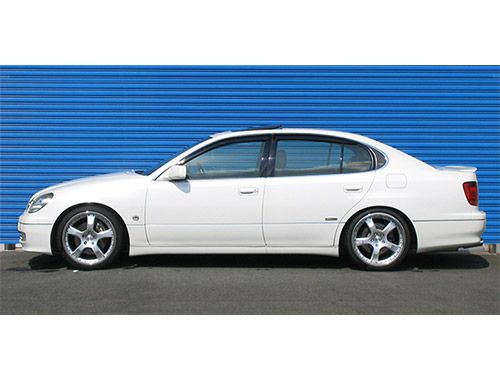

▲The above photo is an item for JZS161,JZS160.

"Not just for lowering the vehicle height."

"Super Low Stance Model" for reliable driving performance.

Application Specification
Engine2JZ-GE
Model Year1998 - 2005
Remarks

 FRONTREAR
Damping force adjustment30 steps30 steps
Base valve--
Height adjustable lower bracket
Upper mountSpherical bearingSpherical bearing
Inverted/Normal typeNormalNormal
Damper/Spring layoutCoiloverCoilover
Spring rate change at factoryPossiblePossible
Damping force adjustment with wire-
Helper spring
(Spring rate N/mm)
--




Ride Heightmm
 Factory *2Test dataAdjustable range
High - Low *3
Drivable range
High - Low *4
FRONTRide height *1657615693 ~ 565693 ~ 615
Against stock-37-79-1 ~ -129-1 ~ -79
REARRide height *1635593680 ~ 539667 ~ 593
Against stock-45-870 ~ -141-13 ~ -87
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.




Kit information
Spring of Full Kit
 FR
Spring rate N/mm(kgf/mm)176 ( 18 )157 ( 16 )
Free height (mm)150170
Spring typeStraightStraight
Recommended range to change spring rate N/mm(kgf/mm)+20 ( 2 )±20 ( 2 )
Specification of damper
 FR
Damping force (Rebound/Damping)N*1913 / 9641970 / 841
Default position of dial2020
Remaining damper stroke (Rebound/Damping)mm40 / 3230 / 42
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
 FR
DefaultTestDrivable limit
High *
Drivable limit
Low *
DefaultTestDrivable limit
High *
Drivable limit
Low *
Length of
case (mm)
394366406366435404446404
Spring
Set length(mm)
150150139150170170160170
Length to ride hight
adjuster (mm)
10476127761259414694
Lever ratio1.571.50
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.




Test vehicle information
 FR
Vehicle weight kg--
Tire size (Air pressure) kPa235 / 35 - 19 ( 230 )265 / 30 - 19 ( 230 )
Wheel size8.5 JJ × 19 off 2510 JJ × 19 off 35
Alignment
(Toe/Camber)
Test data0 mm / -3°18'in 4 mm / -3°36'
Standard valuein 1 ± 2 mm / -0°20' ± 45'0 ± 2 mm / -0°55'± 45'
* Test data at HKS.




Parts List * It may be changed without prior notice.





Point
・Ultimate low-down suspension that used movable limit level of the arm. This kit is for dress-up user who wants a serious low-down.
・The damping force and spring rate are a little firm setting to prevent the interfere of the aero and the road at a high rolling and to compensate for uncomfortable ride because of more weight with big wheels.
・If the case length for both front and rear are set lower than the driving limit level, the upper arm and body might interfere with each other.
・Factory settings are 90mm from ground.

●About installation modification
・Need a hole for rear damping force adjustment cable(inside trunk).
