GR COROLLA
Featured Car Model
GR COROLLA

Ever since the debut of the GR Corolla, this platform has captured global attention thanks in part to the success of the GR Yaris, which proved the G16E engine’s performance and desirability. Building on our extensive research and development with the GR Yaris, we've applied that expertise to the GR Corolla platform and now offer a wide range of performance upgrades, allowing you to unlock the full potential of this high-performance 3-cylinder engine.



LEGAMAX Sports Exhaust System
For GR Corolla owners seeking to enhance the sound of the G16E-GTS engine, the LEGAMAX Sports exhaust offers the perfect solution. True to HKS heritage, this system delivers a deep, aggressive tone under throttle while maintaining comfort and quietness during everyday cruising. An included Exhaust Error Canceller ensures no unwanted error codes are triggered.



HIPERMAX S Suspension Kit
Designed for enthusiasts who want to elevate their daily driving experience, the HIPERMAX S provides the ideal balance between performance and aesthetics. Engineered for versatility, this coilover system is equally suitable for daily commuting and spirited weekend drives.



HIPERMAX R Suspension Kit
Purpose-built for circuit use, the HIPERMAX R is optimized for high-grip tires and aggressive driving. With up to 4° of front camber adjustment accessible from the wheel well and 30 levels of damping adjustability, it allows precise tuning for various track conditions. Based on our testing with Yokohama Advan A052 265/35R18 tires, we recommend setting damping to 10 clicks front and 13 clicks rear at Fuji Speedway. For better agility and reduced understeer, adjust the rear damping closer to the soft side.

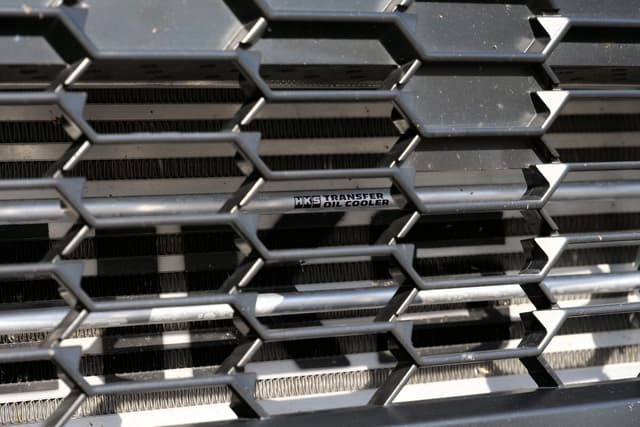

Transfer Oil Cooler Kit
Addressing a known issue where the GR Corolla shifts to 2WD under sustained high-load driving, this dedicated Transfer Oil Cooler Kit prevents overheating of the OEM transfer unit. The pipe-type cooler is designed to operate independently, ensuring it does not compromise the performance of the engine coolant, engine oil, or intercooler systems.



Grommet Head Gasket – Super Cooling Pro
The Super Cooling Pro head gasket improves coolant flow to equalize combustion conditions across all cylinders. In stock form, cylinder No.2 is prone to knocking due to heat buildup. With our revised coolant routing—including passages near the injector seals and between cylinders—knock tendency is minimized, with balanced combustion performance across all three cylinders.



BCD Piston Full Kit G16E HC-TT S3 (Stroker Kit)
This complete stroker kit features our High Compression Triple Tumble (HC-TT) pistons, engineered to accelerate combustion and suppress knocking. It enhances the tumble flow characteristic of the OEM intake port for superior fuel-air mixing. The kit includes WPC-treated I-beam connecting rods with a 25% strength increase and a full counterweighted chrome steel crankshaft. With reduced inertia and the removal of the balance shaft, the 50% balance rate significantly mitigates the typical vibrations found in 3-cylinder engines.



HKS Type-S Aero Body Kit
Complete your GR Corolla build with the HKS Type-S aero package, which includes a front bumper spoiler, side skirts, rear diffuser, and rear wing. Designed to complement the factory styling, this kit enhances the vehicle’s aerodynamic profile and adds an aggressive visual touch.

TOYOTA GR COROLLA 4BA-GZEA14H HKS LEGAMAX SPORTS
Gallery
GR COROLLA_7.JPG
GR COROLLA_6.JPG
GR COROLLA_3.JPG
GR COROLLA_4.JPG
GR COROLLA_8.JPG
GR COROLLA_5.JPG

EXHAUST

EXHAUST
LEGAMAX SPORTS

LEGAMAX SPORTS

It has both quietness and low exhaust pressure! It’s almost quiet as stock vehicle exhaust sound inside car at a low RPM drive. Once you step on the accelerator, you will have dry sporty sound.
Explore

SUSPENSION

SUSPENSION
HIPERMAX R

HIPERMAX R

The fun to drive at will and the balance can be adapted from circuit to winding roads Raised Driving-Comfort, ❝Ultimate All-Round❞
Explore

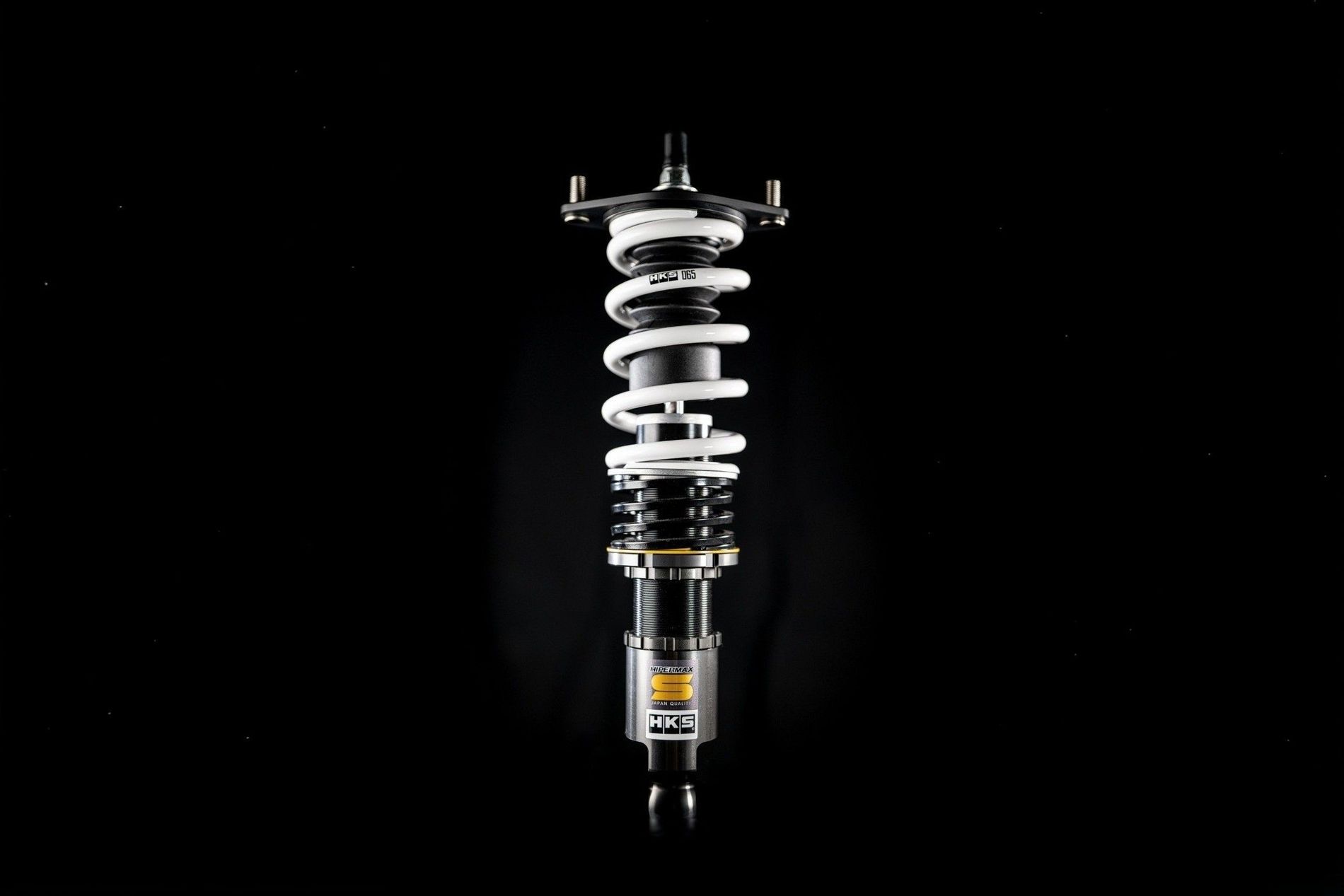

HIPERMAX S

HIPERMAX S

To pursue a comfortable ride and more enjoyable handling performance.
Explore

INTAKE

INTAKE
COLD AIR INTAKE KIT

COLD AIR INTAKE KIT

Combination of carefully crafted carbon cold air intake box and high performance Racing Suction intake adds a premium touch to engine bay and significantly improves quality of air supply to the engine. Carbon intake box is an effective protection from hot air around the engine. Constant supply of fresh air during driving helps to decrease intake temperature. - Dry Carbon Cold Air Intake Box for exquisite and sporty look - Polished Aluminum Piping to replace stock rubber hose and further improve air flow
Explore

ENGINE

ENGINE
COMPLETE ENGINE

COMPLETE ENGINE

"HKS COMPLETE ENGINE - POWERED BY HKS -" is manufactured with all technologies gained through Gr. A, Drag race, D1 GP and TSUKUBA Time Attack motorsport racing history of HKS more than 40 years. Making the best engine requires good engineers and facilities. These engines are manufactured at the same facilities and by the same engineers who worked on racing engines before. Experience the true HKS racing technologies with "HKS COMPLETE ENGINE - POWERED BY HKS -". May 25, 2023 Notice of Temporary Discontinue Accepting Orders for Complete Engine RB26 Series https://www.hks-power.co.jp/en/news/osirase/230525_RB26.pdf
Explore
METAL HEAD GASKET

METAL HEAD GASKET

The Performance requirement from Head Gasket. As the cylinder block and head are not rigid body, when the Head Bolts are tightened, the gap between the surfaces and the surface pressure applied is not even across the whole surface. Moreover, due to combustion pressure and vibration while driving, the conditions are continually changing and the contact surface is being continually beaten. As a result, a good gasket must ensure that contact surface pressure is spread as evenly as possible and also adapt quickly to the ever changing gaps that can appear in the contact surface to maintain a good seal with good pressure.
Explore
CAPACITY UPGRADE

CAPACITY UPGRADE

For drivers who just need "more power and more torque", HKS have designed a series of capacity upgrade kits to suit each engines characteristics. Increased displacement offers more torque at lower engine speeds and by using the highest quality materials, the durability required for high levels of tuning is achieved. Nickel coated pistons which have strong anti-knocking properties combined with fully counterweighted crankshafts and high strength connecting rods (rods optional in some kits) combine to extract maximum performance from the turbocharger and increase torque.
Explore
SUPER FIRE RACING M-SERIES (ENGINE)

SUPER FIRE RACING M-SERIES

Ultimate spark plug "M". Ignitionability, durability, anti-insulation are all reinforced. HKS has made the best plug for both tuning engines and stock engines.
Explore

OIL

OIL
SUPER OIL

SUPER OIL

HKS’s #1 best-selling engine oil "SUPER OIL" are not just for maintenance, it is a tuning part to improve the engine performance. It delivers stable performance and has high film retention ability even at high-rpm and high-temperature range. Highly versatile from high-performance driving to daily use. Some of the products are compatible with the latest API standard of "API SP" standard
Explore

PLUG

PLUG
SUPER FIRE RACING M-SERIES (PLUG)

SUPER FIRE RACING M-SERIES

Ultimate spark plug "M". Ignitionability, durability, anti-insulation are all reinforced. HKS has made the best plug for both tuning engines and stock engines.
Explore

AERO PARTS

AERO PARTS
BODY KIT

BODY KIT

Custom style aerodynamic devices that transcend function and style It inspired a traditional racing style from previous HKS time attack machines and shows the power and strength. Aerodynamic devices are designed through 3D CAD design and aerodynamic analysis. It offers improved driving stability. The HKS original body kit is not only for custom style but also for performance evaluation.
Explore

GOODS

GOODS
CARBON COVER

CARBON COVER

Dry carbon for owners who pursue quality.
Explore
