TOYOTA GR SUPRA
HM Touring-Height Adjustable Spring
HKS height adjustable springs kits are a great alternative to conventional down springs. With included height adjuster it is possible to select different height suiting your car and enjoy more sporty ride.

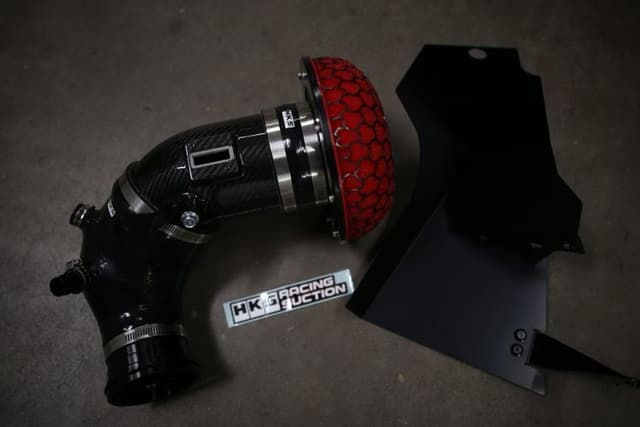

RACING SUCTION
Piping length, angle, and position of the bends in the Racing Suction for the Toyota GR Supra are calculated to increase air flow.

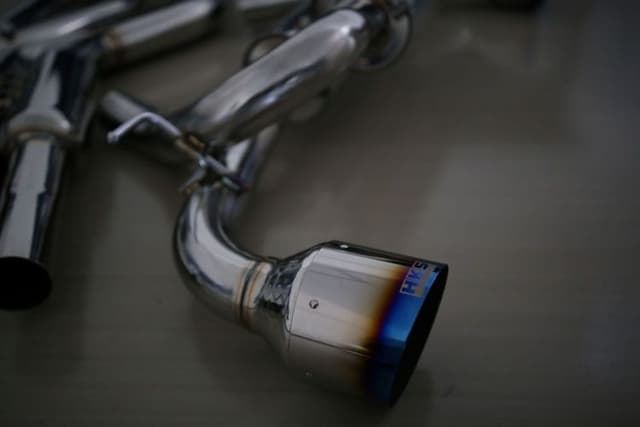

DUAL EXHAUST
Piping diameter is increased sufficiently throughout the system, capable of supporting subsequent upgrades. Retains full functionality of the factory valve operation by incorporating use of the OEM actuator. Through extensive sound frequency analysis, the exhaust note is tuned to be distinct and pleasant. Dyno proven gains of 30+ horsepower as measured internally at HKS and at external facilities.

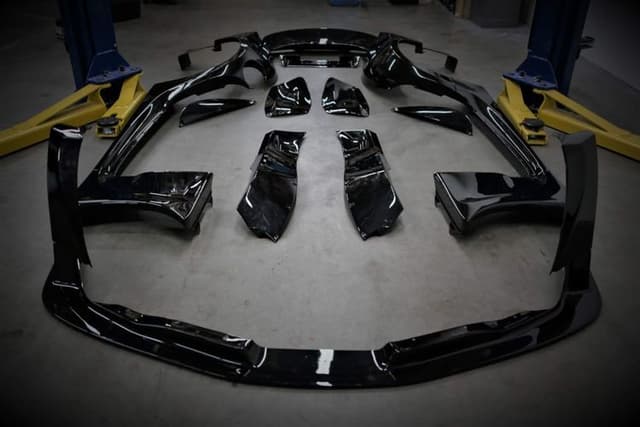

PREMIUM BODY KIT
A design philosophy derived from our Time Attack racecars, HKS presents a Premium Body Kit for the 2020 Toyota GR Supra.

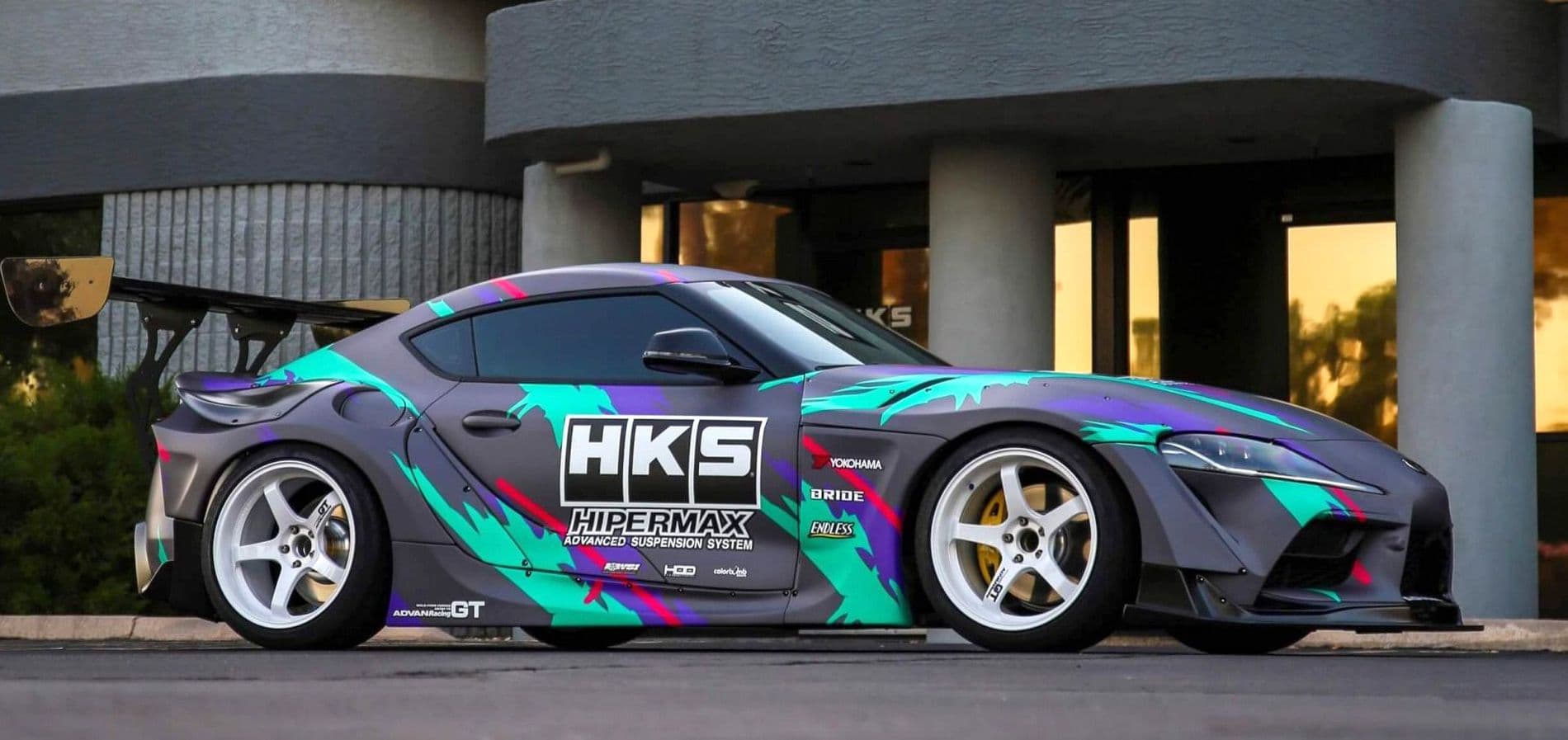

HKS GR SUPRA FOR TAS2020
Parts List
| Code No. | Product | Price | Remarks |
| SUPER AIR FILTER | |||
| 70017-AT131 | SUPER AIR FILTER TOYOTA type31 | $55.00 | Stock: TOYOTA[17801-WAA01/17801-WAA02], BMW[1371 863 5102/1371 858 0428] Replacement filter: 70017-AK104SAF Replacement Filter M2-SIZE(3row) |

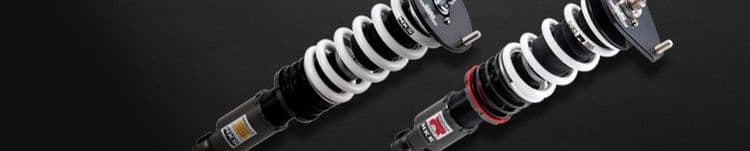

| HM TOURING | |||
| 80280-AT001 | HM Touring-Height Adjustable Spring-DB42 | $1,000.00 | ·Front bump rubber needs processing. ·Packers are used when setting the front height to 21 mm or more. ·Spring Rate F/R: 42.6/116.8(N/mm), Height: F=-25 to -45 R=0 to -50 (mm) |
| 80280-AT001V | HIPERMAX Touring with TONE TOOL for GR Supra | $1,600.00 | Box 1 LWH: 565, 290, 410 Box 2 LWH: 430, 250, 120 |
| FULL DUAL | |||
| 31014-KT001 | DUAL MUFFLER SUPRA DB42 B58 without OPF | $3,050.00 | ·Use the Stock Actuator and Control ·Applicable vehicle: without OPF type |
| PREMIUM BODY KIT | |||
| 53004-AT011 | HKS Premium Body Kit GR SUPRA | $7,000.00 | Include Body Kit only, FRP |
| 53004-AT012 | HKS Premium Body Full Kit GR SUPRA | $10,000.00 | Including Body Kit (FRP)+FRP WING set |
| 53004-AT013 | FRP GT wing GR SUPRA | $4,000.00 | |
| HIPERMAX SERIES OPTIONAL PARTS | |||
| 82005-AT001 | HKS×TONE TOOL SET for GR Supra | $680.00 | Quantities are limited. |
| MAX IV SP | |||
| 80250-AT003 | HIPERMAX MAXIVSP DB42 | $3,300.00 | |
| 80250-AT003L | HIPERMAX MAXIVSP DB42 LAUNCH EDITION | $3,300.00 | |
| 80250-AT003C | MAXIV SP DB42/22 FULL CANCELLER KIT | $3,600.00 | BOX#1: 685 X 290 X 410 (29.5kg), BOX#2 : 300 X 205 X 90(1.2kg) |
| Fine Tune Belt | |||
| 24996-AK051 | FINE TUNE V-BELT 6PK1149 | $83.00 | |
| Super Turbo Muffler | |||
| 31029-AT003 | SUPER TURBO MUFFLER GR SUPRA DB42 B58 | $3,750.00 | BOX 2: 1525mm x 462mm x 305mm (14..5kg) |
| 31029-AT004 | SUPER TURBO MUFFLER GR SUPRA DB42 MAIN | $2,600.00 | Compatible with both a vehicle with/without OPF. Cut the stock muffler at the at the mid pipe service separation point and connect. |
| RACING SUCTION | |||
| 70028-AT001 | DryCarbon Racing Suction kit GR SUPRA | $980.00 | |
| MAX IV SP DRAG | |||
| 80250-AT003D | HIPERMAX MAXIV SP Drag DB42 FULL KIT | $3,400.00 | This product is designed for drag racing. Please be careful when you drive on public roads. |
| 80250-AT003DC | MAXIV SP Drag DB4222 FULL CANCELLER KIT | $3,700.00 | BOX#1: 685 X 290 X 410 (29.5kg), BOX#2 : 300 X 205 X 90(1.2kg) |
| OTHER ELECTRONICS | |||
| 45012-AT001 | Suspension Error Canceler DB42 DB22 | $450.00 | |
| HIPERMAX S | |||
| 80300-AT023 | HIPERMAX S FULL KIT DB82 FULL KIT | $3,180.00 | |
| 80300-AT023C | HIPERMAX S FULL KIT DB82 FULL CANCELLER KIT | $3,490.00 | BOX#1: 685 X 290 X 410 (28kg), BOX#2 : 300 X 205 X 90(1.2kg) |
| COLD AIR INTAKE KIT | |||
| 70026-AT003 | COLD AIR INTAKE BOX for GR SUPRA | $1,080.00 | This is the Dry Carbon Intake Box for 70028-AT001 Racing Suction. For installing, the Racing Suction Kit will be needed separately. |
| 70026-AT002 | COLD AIR INTAKE FULL KIT for GR SUPRA | $1,900.00 | This kit includes 70028-AT001 Racing Suction Kit and 70026-AT003 Carbon Intake Box. |
| OIL FILLER CAP | |||
| 24003-LB004 | OIL FILLER CAP COVER BMW TYPE 4 | $98.00 | |
| SUPER SQV4 | |||
| 71008-AT021 | SUPER SQV IV GR SUPRA B58 | $1,200.00 | |
| 71008-AT021V | SSQV IV + Return Kit GR SUPRA for Normal box | $1,300.00 | For the vehicle having the stock air cleaner. |
| 71008-AT022V | SSQV IV + Return Kit GR SUPRA for HKS R/S | $1,300.00 | For the vehicle having the HKS Carbon Racing Suction or HKS Cold Air Intake. |
| HIPERMAX R | |||
| 80310-AT003 | HIPERMAX R DB42 FULL KIT | $3,300.00 | When installing on SUPRA "RZ" and "SZ-R", a separate AVS error canceller is required. |
